OPA project demonstration

Julien Hervé

September 26, 2023

Context

The initial situation

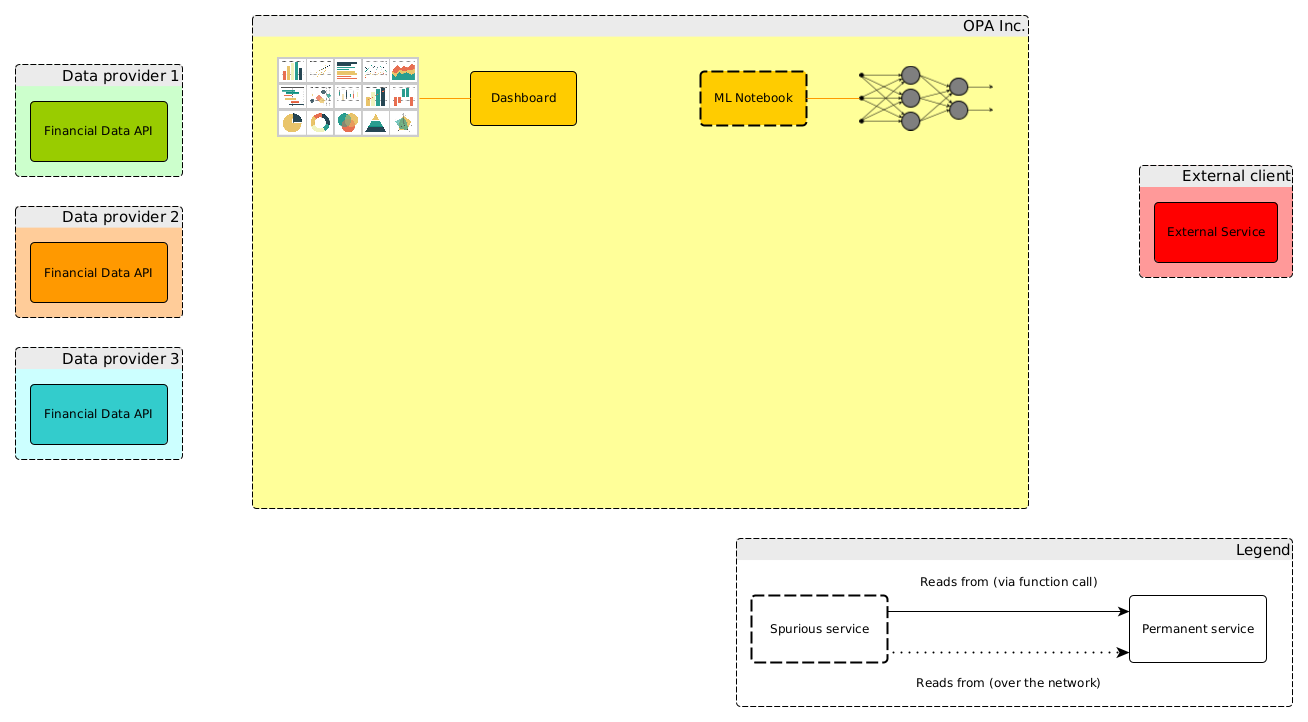

Fill in the blanks

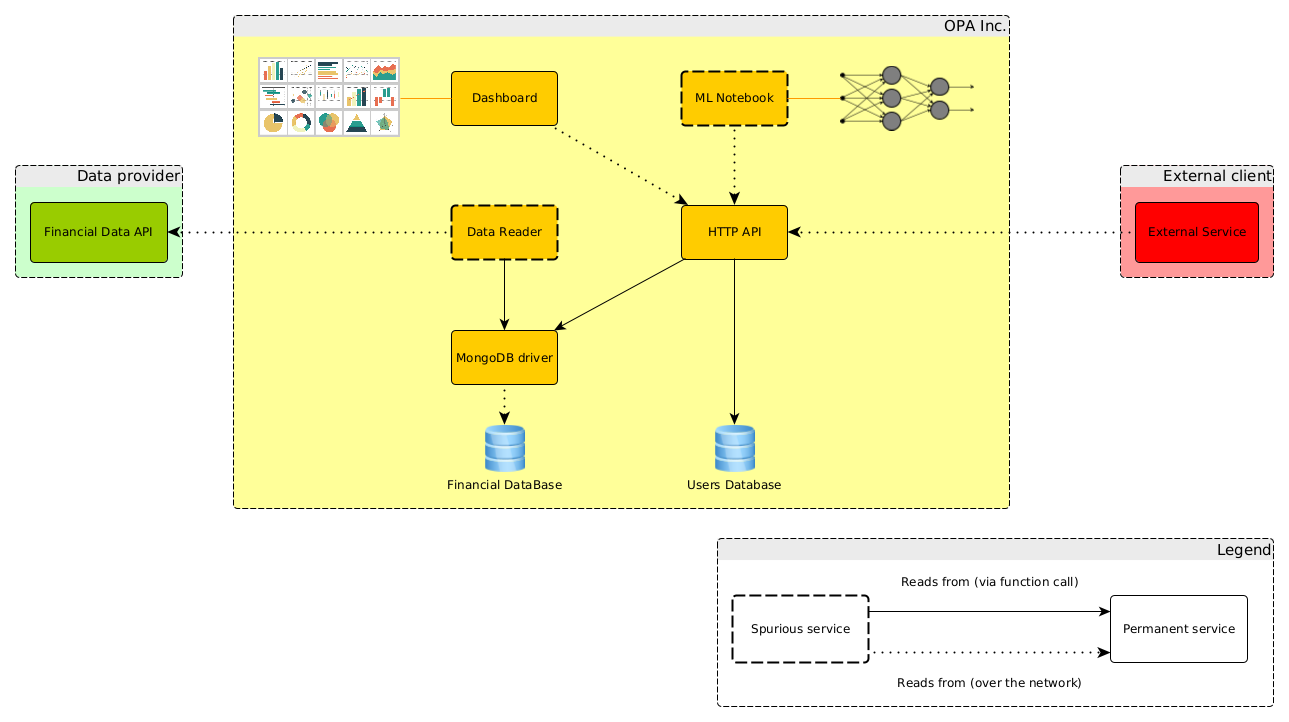

Final architecture

Profit !

Before we start …

Interactivity (1)

Parts of the demo can be run in your browser 🧑‍💻

The links are on https://jherve.github.io/
- Internal API
- Dashboard
Use your first name as username/password, or “guest”

Interactivity (2)

While we are at it..

Choose a company within this list :
- Google/Alphabet [GOOG]
- Facebook/Meta [META]
- Nvidia [NVDA]
- Pepsi [PEP]
- Adobe [ADBE]
- Netflix [NFLX]
- Tesla [TSLA]
Vote in comments ! 🗳️

Some concepts (1)

ticker / symbol
- a unique short identifer for a company stock
- AAPL => Apple, MSFT => Microsoft, META => Meta

Some concepts (2)

OHLC :
- “open”, “high”, “low”, “close”
- characterizes the volatility of a given stock
- in simple cases, only the “close” value

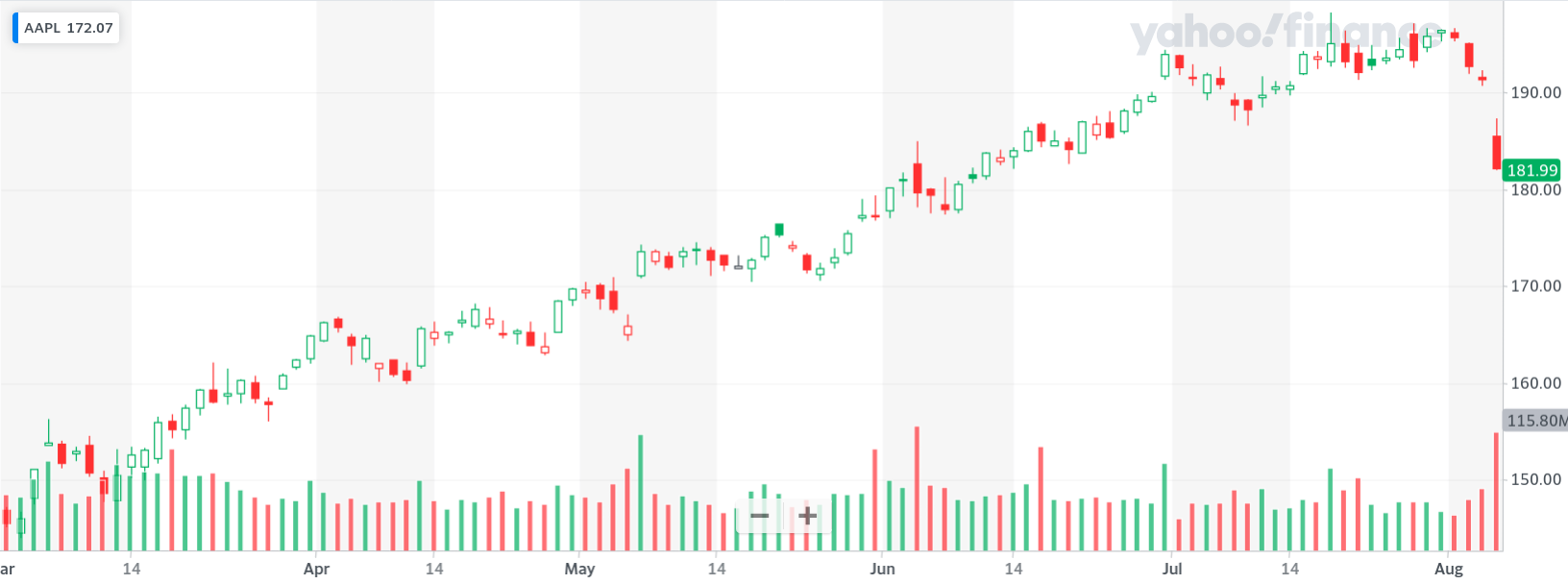

OHLC graph

Some concepts (3)

volume :
- the number of stock values exchanged
- characterizes the activity on a given stock

volume graph

The external API

What we start with

Choosing the data provider

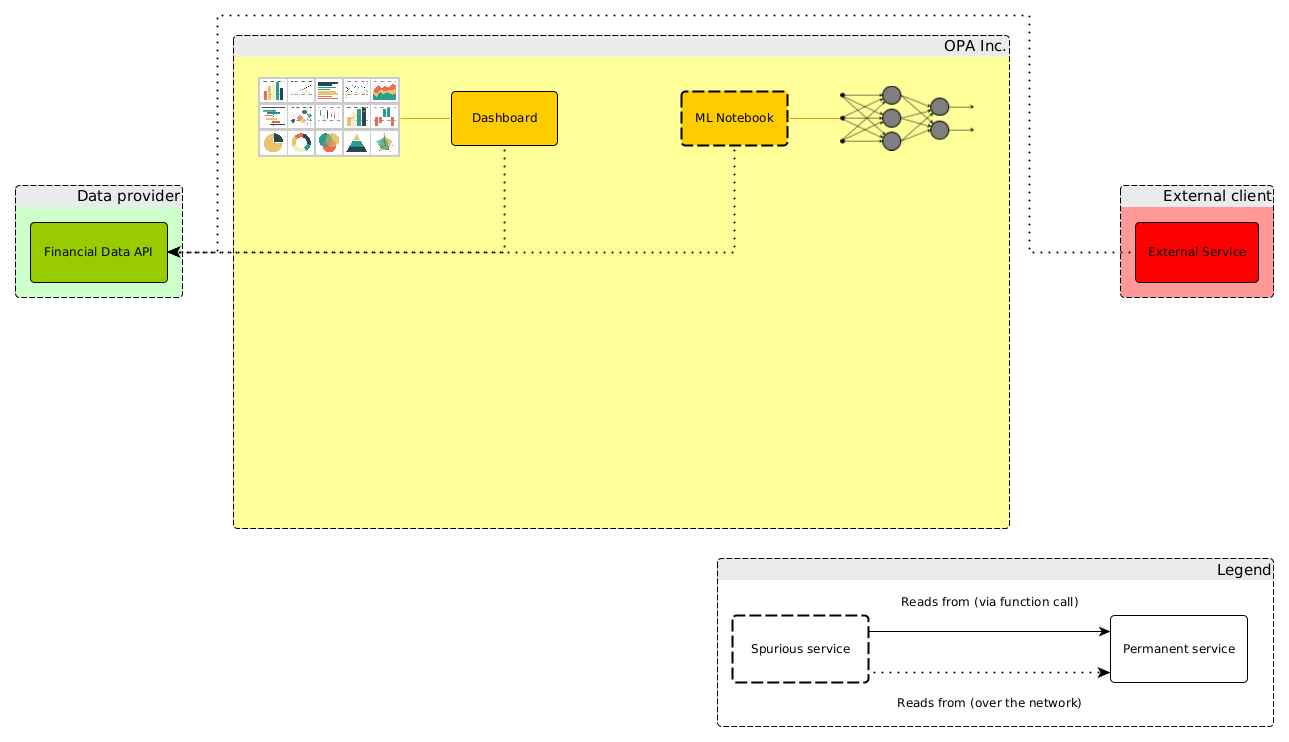

Reading the external API over the network

External API

Slow
API is limited (~250 hits/day)
No custom querying (e.g. several tickers)

Caching the data

Before

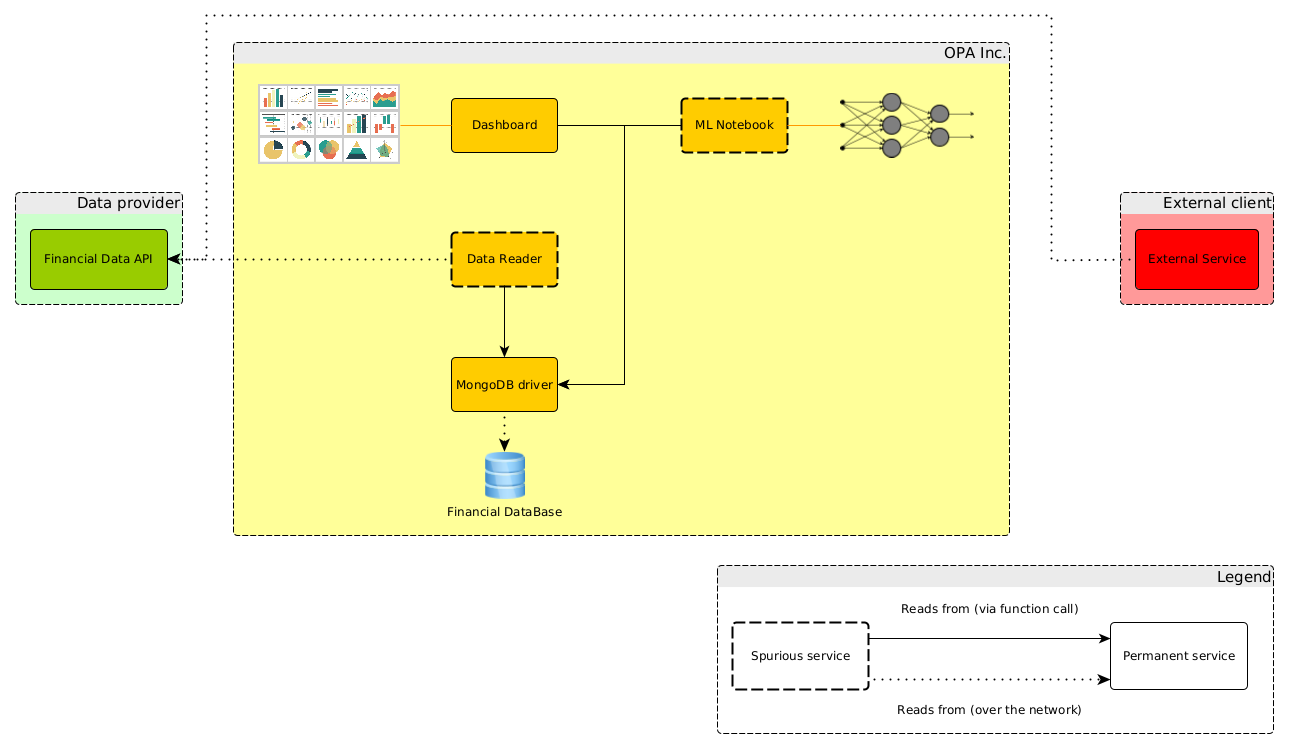

Adding a local cache

Adding a local cache

Data reader and local storage

Data is retrieved once and for all
No more API limits
Data can be queried in powerful ways

Adding an HTTP API

Before

Adding the API

Adding the API

[connect to http://63.35.39.206:8000/docs]

HTTP API

Allows access to third-parties
Extensible at will
Secure

Data dashboard

Inspiration (1)

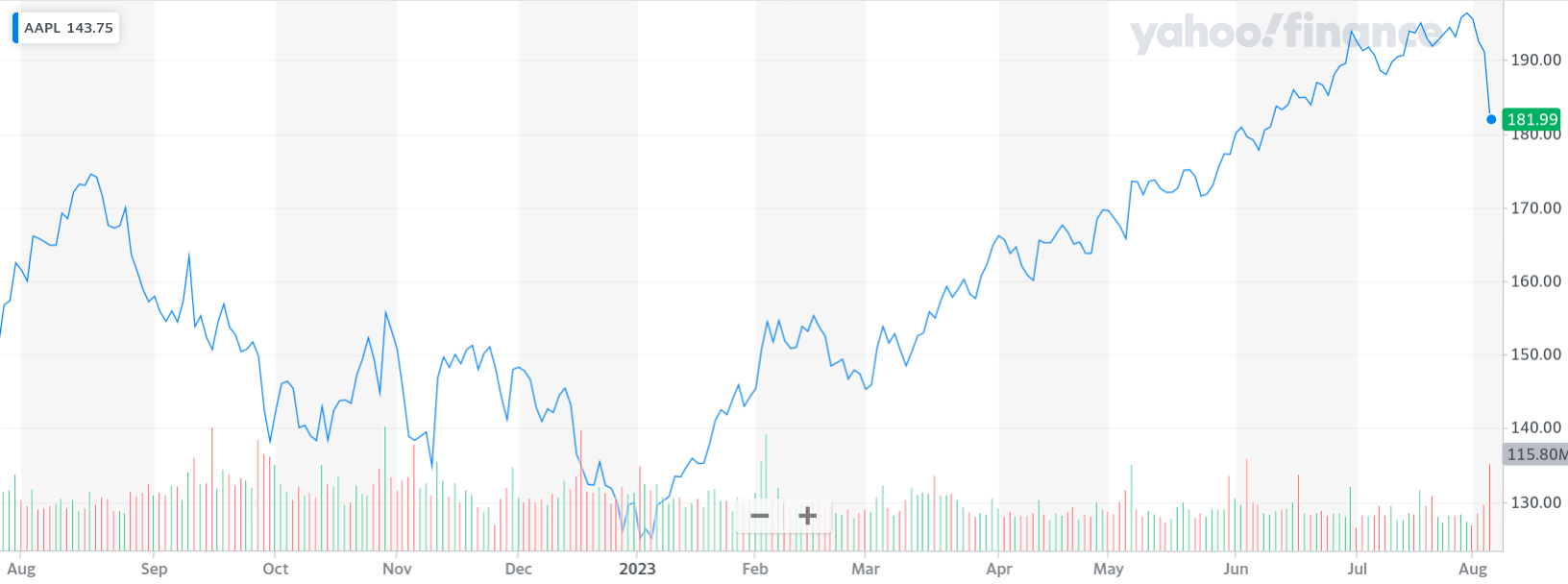

Apple trending line

Inspiration (2)

Apple Candlesticks graph

[connect to http://63.35.39.206:8050/]

Wait !

3 companies aren’t that much to analyse the market
What if we want to add new companies ?
Let’s check the votes !

Thanks for your attention !

Extras

Tests

Unit (module-level)
Integration (with the database)
Functional (e.g. checks that the API works)

Interactive shell

Very useful for development and quick debugging !
